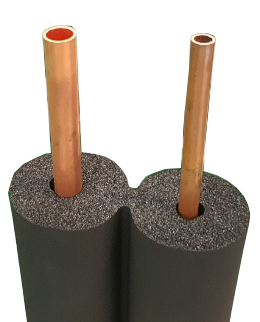

| NO | double NBR(mm) | TUBE(mm) | LENGTH (m) |
||
|---|---|---|---|---|---|
| ① | ② | ① | ② | ||
| 1 | 9T | 9T | 6.35X0.7T | 9.52X0.7T | 15/20/30 |
| 2 | 13T | 13T | 6.35X0.7 | 9.52X0.7 | |
| 3 | 9.52X0.8 | ||||
| 4 | 12.7X0.8 | ||||
| 5 | 15.88X0.8 | ||||
| 6 | 15.88X0.9 | ||||
| 7 | 15.88X1.0 | ||||
| 8 | 9.52X0.7 | 15.88X0.8 | |||
| 9 | 15.88X0.9 | ||||
| 10 | 15.88X1.0 | ||||
| 11 | 9.52X0.8 | 15.88X0.9 | |||
| 12 | 15.88X1.0 | ||||
| 13 | 19.05X1.0 | ||||
| Key properties | Value/Assessment | Test method/Standard |
|---|---|---|
| General | ||
| Material | Elastomeric Foam, NBR | |
| Colour | Black(basic) & others | For other colir, please contact with technical department |
| Cell structure | Completely colsed cell | - |
| Density(kg/㎥) | 40 to 80 | ASTM D1667 |
| Service temperature | -50℃ to + 105℃ | For other temperature, please contact with technical department |
| Life-time | ||
| Service life-time under proper installation condition | ≥10 years | |
| Thermal conductivity | ||
| K-value (W/m.K) | 0℃ 24℃ 40℃ | ASTM C518 |
| 0.032 0.033 0.036 | ||
| Water vapour behavior | ||
| Water Vapour Permeability | ≤2.5 x 10-11 g/(m.s.Pa) | EN 12086-13 |
| Water Vapour Resistance | μ≥10,000 | EN 12086-13 |
| Water Absorption | ≤0.1%(by volume) | ASTM C209 |
| Fire behavior | ||
| Fire performance | Class V-0 , 5-VA (Self - extinguishing, no dripping) Class 1 Class B1 | UL - 94 Certificate BS476 part 7 GB 8624 |
| Health | ||
| Low TVOCs | ISO 16000 | |
| REACH | ||
| RoHS ll | IEC 62321 | |
| Anti-Microbial | ASTM E2180 | |
| Fungal resistance | ASTM G21 | |
| Free of Dust,Fibre and Formaldehyde | ||
| Environment | ||
| Singapore Green Building | Excellent(VVV) | |
| UV resistance | For UV protection, covering system is required | |
| Ecological | Without CFCs, HCFCs | |
| Other technical data | ||
| Sound reduction | NRC =0.3 | ASTM C423-17 ASTM C534 |
| Flexibility | Excellent | |
| Heat stability(% shrinkage) at 104℃ in 7 days | ≤ 7% | |
