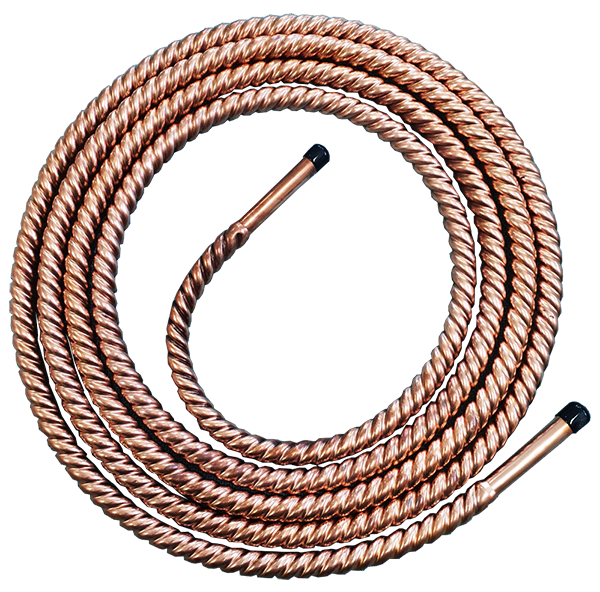

COPPER SPIRAL TUBE

SPEC

NO	O.D(mm)	T(mm)	L(mm)	Pcs/Box
1	9.52	0.6	400	50
2	9.52	0.6	550	50
3	9.52	0.6	700	50
4	9.52	0.6	1,000	50
5	12.7	0.6	400	50
6	12.7	0.6	700	50
7	12.7	0.6	800	50
8	12.7	0.6	1,000	50
9	12.7	0.6	1,200	50
10	12.7	0.6	1,500	50
11	12.7	0.6	2,000	15
12	12.7	0.6	3,000	15
13	12.7	0.6	4,000	15
14	12.7	0.6	5,000	15
15	12.7	0.6	6,000	8
16	12.7	0.6	7,000	8
17	12.7	0.6	8,000	8
18	15.88	0.7	700	50
19	15.88	0.7	800	50
20	15.88	0.7	1,000	50
21	15.88	0.7	1,200	50
22	15.88	0.7	1,500	50
23	15.88	0.7	2,000	12
24	15.88	0.7	3,000	12
25	15.88	0.7	4,000	12
26	15.88	0.7	5,000	12
27	15.88	0.7	6,000	6
28	15.88	0.7	7,000	6
29	15.88	0.7	8,000	6
30	19.05	0.8	1,000	30
31	19.05	0.8	2,000	10
